Partnertec Tools

Partnertec Tools designs and manufactures custom tooling solutions for the electronic manufacturing industry.  We deliver high-precision solutions tailored to complex PCB designs and advanced production environments.

Our focus is on improving process stability, product quality, and production efficiency in soldering, cleaning, handling, and precision manufacturing.

What we do

We develop fully customized PCB tooling solutions, based on a detailed technical analysis of your design.
Each solution is engineered to ensure optimal manufacturability, reliability, and performance across a wide range of production environments.

Our engineering foundation is built on more than 25 years of experience at ITW – Vitronics Soltec, where we gained deep hands-on experience in all kind of soldering technologies.

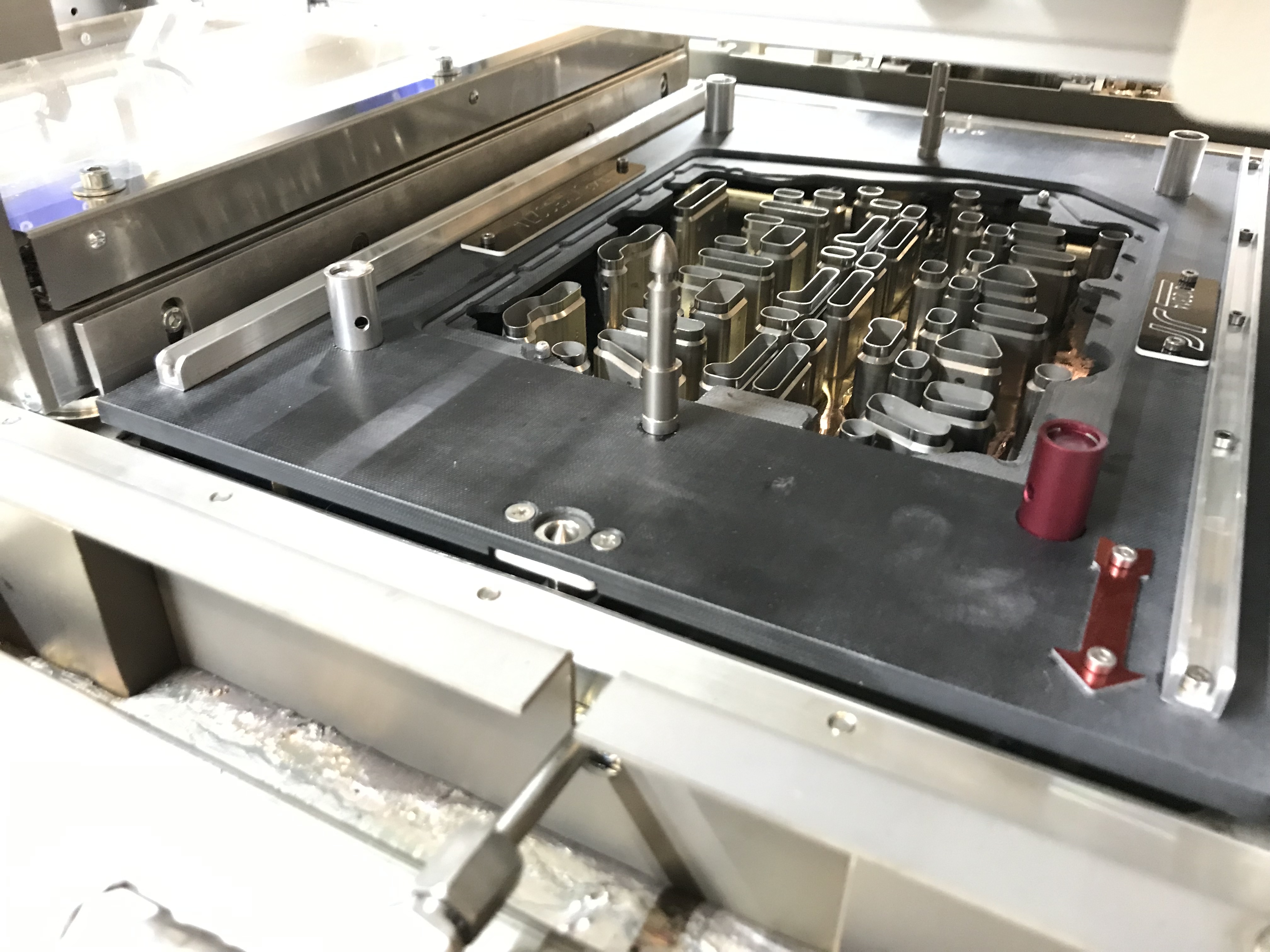

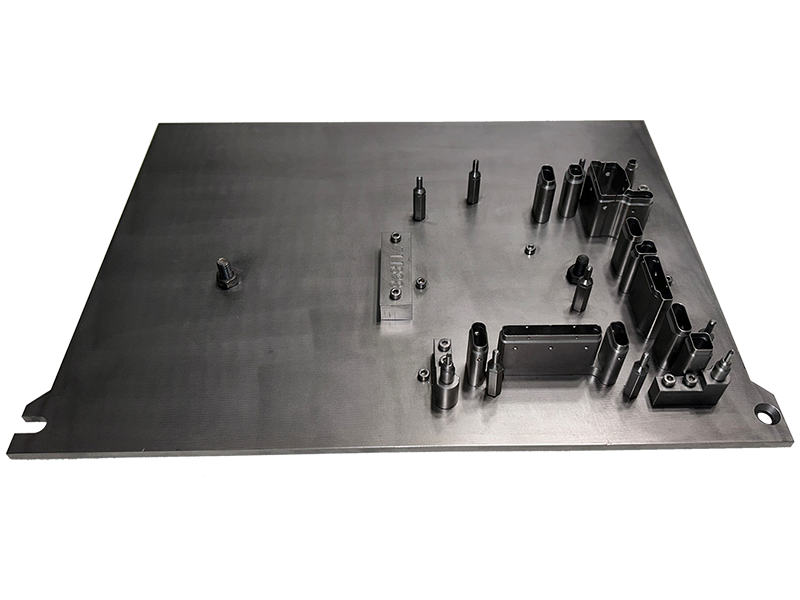

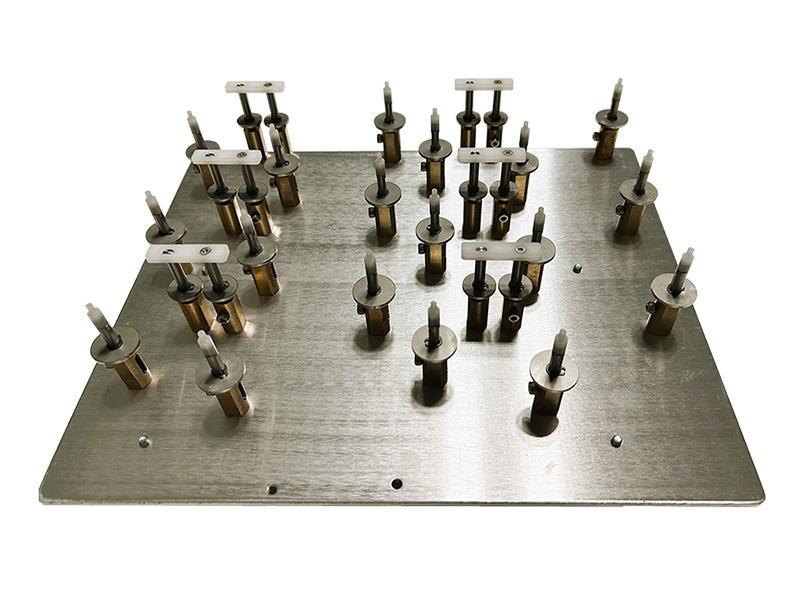

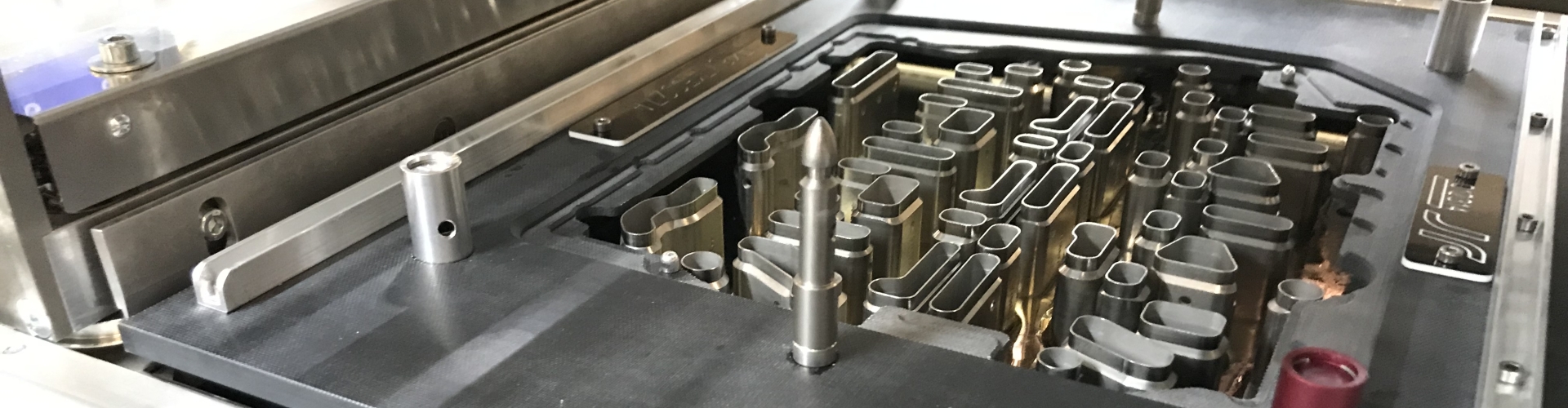

Multiwave process capabilities:
• Capabilities up to 1,8 mm pitch and lower
• Fine pitch applications possible by the use of screens in combination with unique nitrocover system (Zeva V)
• Nozzles are standard treated to be compatible with lead free environments
• Life time during normal use: multiple years
• Quick disconnect system for fast exchange of tools
• Bolted nozzles offer flexibility

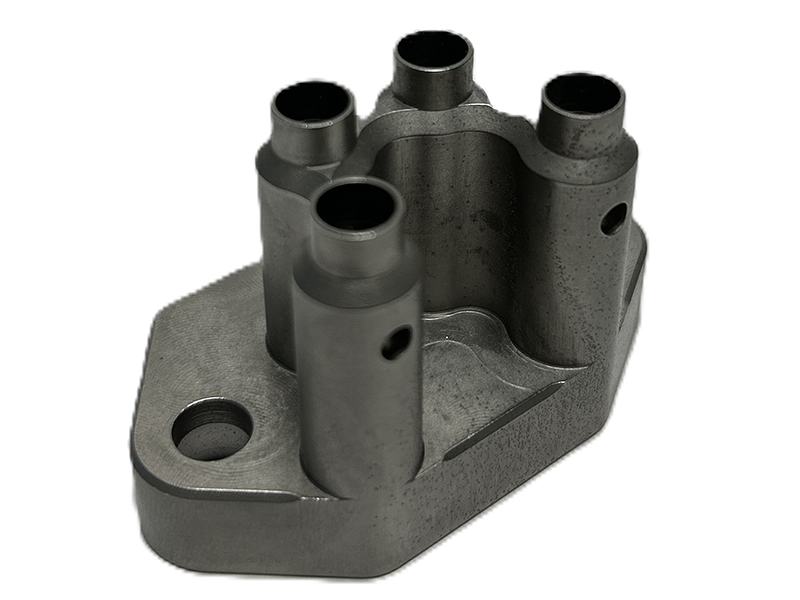

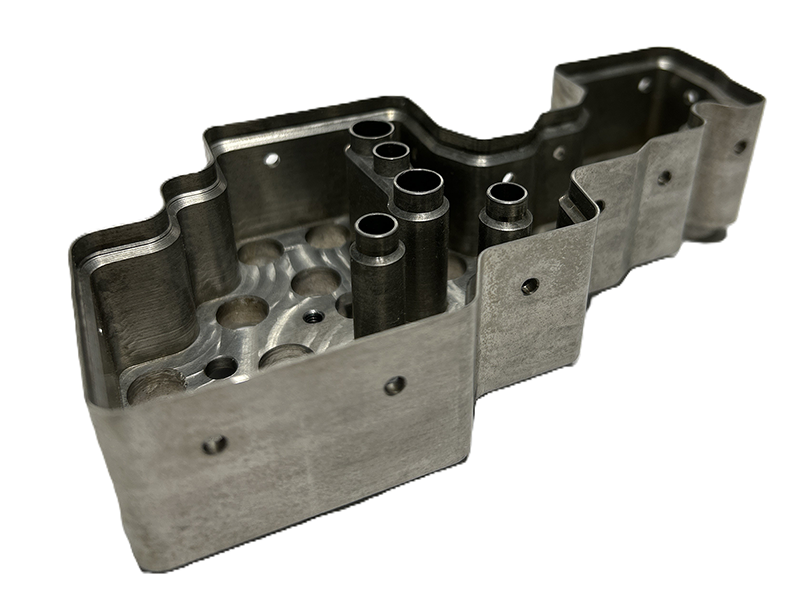

Vitronics Soltec Design rules

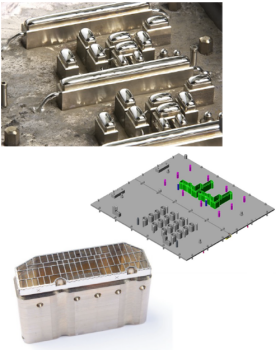

• Partnertec Tools has acquired licenses to be able to design nozzle plates for all Vitronics Soltec products like 6747, 6748 and Zeva V
• Also other systems can be supported
• The design incorporates a unique sideflow system that minimizes the free space required on the PCB while the temperature in the nozlle is continuously refreshed
• The tool is extremely durable when using an optional chrome carbide diffusion layer
• Material is none wettable and needs a low level of maintenance

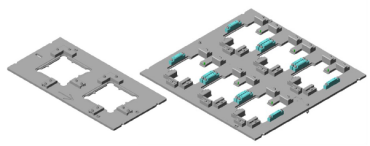

    Supported Application:

•    Complex and irregular PCB geometries

•    Flexible and Flex Rigid Circuits

•    Flex-Foil applications

•    Sensitive electronic assemblies

Key benefits:
• Full PCB fixation (no movement or deformation)
• No bending or deformation
• Protection of sensitive components
• Stable, repeatable cleaning conditions
• Consistent, high-quality results

Outcome:
A controlled cleaning process with reduced variation and improved reliability.

Technical Capabilities

• Precision up to ±2 µm
• Real-time process monitoring
• Automatic corrections

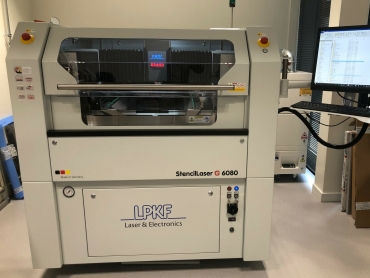

• Working area up to 475 × 475 mm
• Fine-Grain Steel (80–150 µm)
• Stainless Steel 304 (80–200 µm)
• Custom materials and other thicknesses on request

Advantages

• Faster lead times
• Full production control
• Higher precision and consistency
• Direct engineering-to-production workflow
• Flexibility for prototypes and series production
